RV Full PTFE Pneumatic Diaphragm Pump with 7 Bar Max Pressure and 400cpm Max Reciprocating Speed

  • 1
  • 2

Brand Name : RV

Place of Origin : China

MOQ : 1pcs

Price : 16000-20000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 working days

Packaging Details : Wooden Case /Carton case

Contact Now

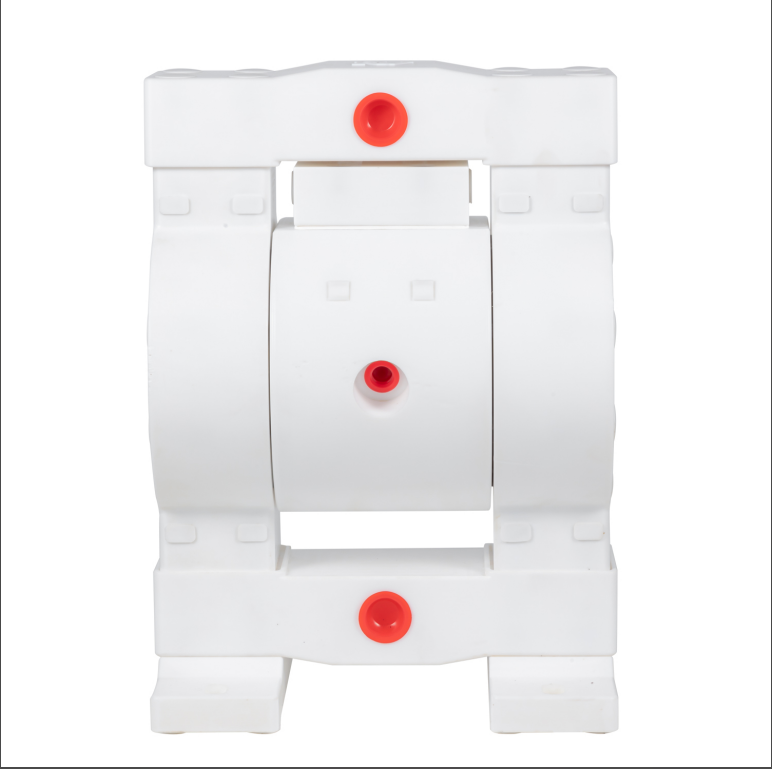

RV Full PTFE Pneumatic Diaphragm Pump

RV Full PTFE Pneumatic Diaphragm Pump with 7 Bar Max Pressure and 400cpm Max Reciprocating Speed



RV ful PTFE pneumatic diaphragm pump is made of polytetrafuoroethylene material with excellent corrosion resistance and high temperatureresistance. it is widely used in chemical industry/electronic circuitoharmaceutical and other fields.



Features

1.Since there are no electrical components, the PTFE pneumalic diaphragm pump wil not generate sparks during operation, making it verysuitable for use in places with explosion risks.
2. Made of full PTFE, it performs very well when conveying strong acid and alkali fluids.3. The fluorine-lined bolts are hidden in the PTFE plugs, which have stronger corrosion in extreme environments
4. The universal design of the upper and lower covers makes maintenance easy and assembly simple.
5. Using integrated composite diaphragm, it can operate continuously for more than 2,000 hours.
6. CNC machined parts have high assembly precision and have better sealing resistance than injection molded parts.

Model  Max Pressure  Max Flow Rate  Max Reciprocating Speed  Max Suction Height  Max Permitted Grain  Max Air Consumptiom
DN15 7 Bar  36lpm  400cpm  3.5m  2.5mm 8.5 NL/S
DN25 7 Bar 125lpm  276cpm  3.5m  4mm 19.3 NL/S
DN40  7 Bar 315lpm  200cpm  4.5m  5mm 48.6 NLS
